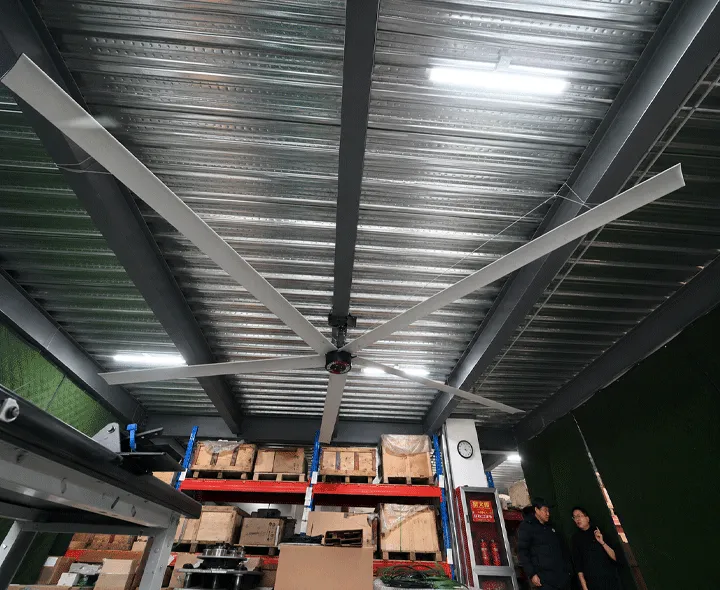

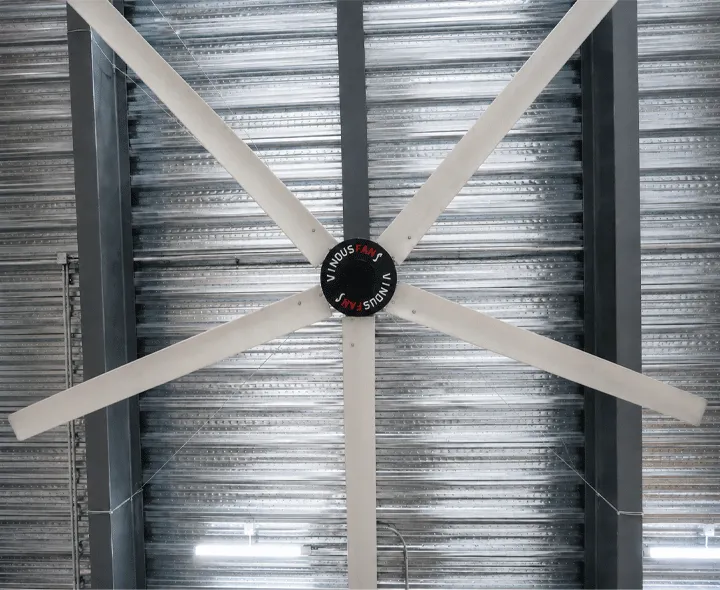

P730 Series HVLS Fans

Vindus P730 Series HVLS fans deliver powerful, consistent airflow driven by an advanced permanent magnet synchronous motor (PMSM), while consuming less than 1,000 watts at maximum speed. The P730 Series delivers quiet, comfortable airflow in summer and effectively equalizes temperature stratification in winter.

This exceptional balance of performance and energy efficiency makes the P730 Series ideal for large industrial and commercial spaces, significantly reducing operating costs and enabling a fast return on investment through long-term energy savings.

Designed for maximum lifecycle value, the P730 Series features a floor-level integrated HMI, allowing safe and convenient operation, inspection, and maintenance without the need for roof access or lifting equipment.

Its clean, streamlined design requires only a single cable from ceiling to floor, simplifying installation and reducing maintenance complexity. It performs best in large spaces with ceiling heights from 20 ft to 33 ft, and is available in 16 ft and 18 ft diameters.

Inquire Now

product details Features Controller Applications Inquire Now

Product Details

Model/Performance	Diameter (ft)	Number of Blades	Weight (lbs)	Max Speed (RPM)	Power Usage (Watt)	Typical Spacing (ft)	Recommended Blade Height (ft)
P730-16	16	5	179	78	450	50–80	20–33
P730-18	18	5	188	67	460	55–90	20–33

Item	Specification
Voltage	208VAC–240VAC Single Phase, 50Hz/60Hz
Sound @ Max Speed	<50dBA
IP Rating	IP55
Temperature Rating	15–130°F
Certifications	UL/ULc Certification
Controller	Forward Direction 0–100%
Mounting	Adjustable
Warranty	3 Years on all Parts – Extended Warranty Optional

Direct Drive Technology

Advantage

No oil

No seals to leak

Only 2 moving parts

Efficiency Design

Advantage

Low noise

Low energy consumption

Low weight

Permanent Magnet Synchronous Motor PMSM

Advantage

Lighter

3-year warranty

Benefits

Advantage

Cost effective

Scalable torque

Low energy losses

Features

5 anodized aluminium blades

Quick and easy installation

Energy-efficient operation

Network multiple fans

Fully adjustable speed

Safety cable and 5 blade retainer links for extreme safety

UL/ULc Certified and conforms to CE, EN and IEC Standard

Multiple redundancies in all critical components, including blades, motors, electronics, and mount

Low-mounted drive, approximately 1.2 m, enables fast, safe, and cost-effective maintenance with no roof access required

Maximizes HVAC system efficiency

Lower energy consumption

Reduces energy costs

Reduces your carbon footprint

Improves indoorair quality

Improves thermal comfort in summer and winter

Quiet operation reduces mental fatigue

Reduces mental fatigue

Increases worker productivity

Applications

Wide Applications of Vindus HVLS Fans in Industrial & Commercial Settings

The large-scale, energy-efficient HVLS fans from Vindus Fans are designed to enhance air circulation, temperature control, and energy savings across a variety of industrial and commercial spaces. These high-volume, low-speed (HVLS) fans provide uniform airflow, improving comfort, productivity, and operational efficiency in the following environments:

Warehouses & Logistics Centers

Optimized air circulation helps prevent heat buildup, ensuring stable inventory conditions and improving worker efficiency.
Reduces humidity levels, protecting stored goods from moisture damage.

Manufacturing Plants & Factories

Enhances factory ventilation, maintaining stable temperatures for precision manufacturing and worker safety.
Reduces HVAC energy consumption, lowering operational costs.

Sports Centers, Gymnasiums & Indoor Arenas

Even air distribution creates a comfortable environment for athletes and spectators.
Helps regulate humidity and temperature, preventing overheating during intense physical activities.

Agricultural Barns & Livestock Facilities

Improves air quality by preventing stagnant air, reducing heat stress for animals.
Helps maintain optimal airflow, creating better conditions for crop storage and livestock health.

Retail Spaces, Shopping Malls & Commercial Buildings

Enhances customer comfort with consistent air circulation, making shopping environments more pleasant.
Supports HVAC systems by reducing temperature fluctuations and minimizing energy costs.

Exhibition Halls & Convention Centers

Controls humidity and airflow, ensuring exhibits, artifacts, and displayed products are protected from moisture damage.
Provides a more comfortable atmosphere for visitors at large-scale events.

Automotive Repair Shops & Industrial Workshops

Regulates temperatures to create ideal working conditions, preventing excessive heat buildup.
Ensures equipment longevity by reducing temperature fluctuations in automobile service centers.

Food Processing & Cold Storage Facilities

Maintains consistent airflow, helping preserve food quality by controlling humidity levels.
Ensures safe and hygienic working conditions, reducing condensation and mold risks.

Educational Institutions (Schools, Universities, Training Centers)

Enhances air circulation in lecture halls, auditoriums, and cafeterias, creating a healthier learning environment.
Supports temperature control in gymnasiums and multi-purpose halls, ensuring comfort for students and staff.
