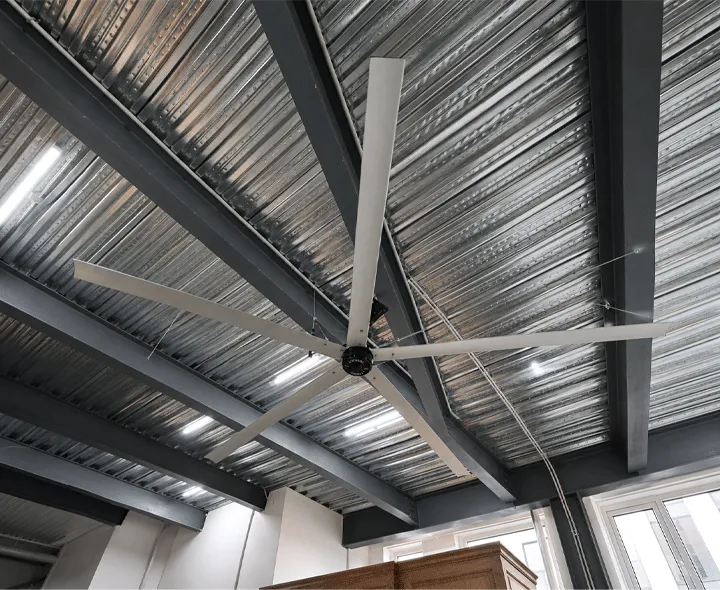

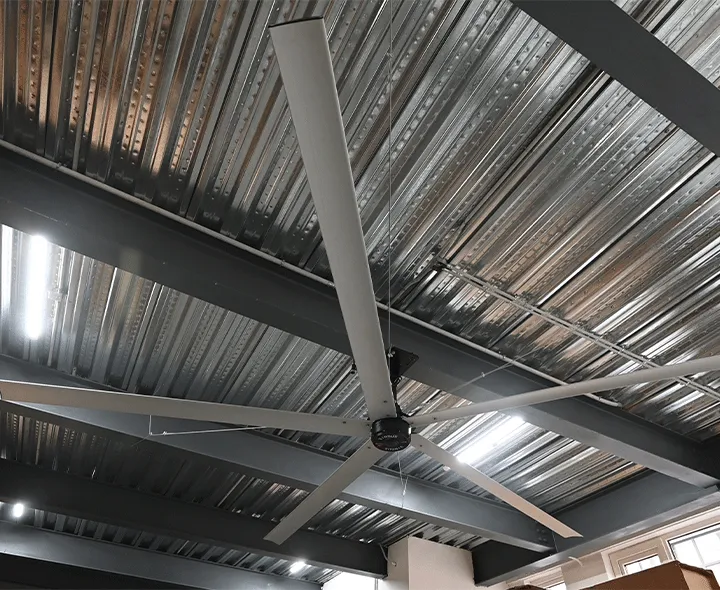

Vindus P680 HVLS fans are specifically engineered for medium-size commercial and industrial spaces where conventional large-diameter HVLS fans are not suitable. Its compact form factor, quiet operation, and high energy efficiency make it an ideal solution for workshops, logistics areas, retail spaces, restaurants, and outdoor patios.

With diameters ranging from 8 ft to 14 ft, the P680 delivers efficient, comfortable airflow in spaces with ceiling heights from 10 ft to 25 ft. Its optimized lightweight design supports extremely low energy consumption while maintaining reliable HVLS performance.

Compact, lightweight, and energy-efficient — purpose-built HVLS performance for medium spaces.

Inquire Now

product details Features Controller Applications Inquire Now

Product Details

Model / Performance	Diameter	Number of Blades	Weight	Max Speed	Power Usage	Typical Spacing	Recommended Blade Height
P680-8	8 ft	5	71 lbs	118 RPM	100 W	20–40 ft	10–25 ft
P680-10	10 ft	5	78 lbs	110 RPM	200 W	30–50 ft	10–25 ft
P680-12	12 ft	5	85 lbs	100 RPM	280 W	35–60 ft	10–25 ft
P680-14	14 ft	5	91 lbs	82 RPM	290 W	40–70 ft	10–25 ft

General Specifications	P680 Series
Voltage	208VAC–240VAC Single Phase, 50Hz/60Hz
Sound @ Max Speed	<50dBA
IP Rating	IP55
Temperature Rating	15–130°F
Certifications	UL/ULc Certification
Controller	Forward Direction 0–100%
Mounting	Adjustable
Warranty	3 Years on all Parts; Extended Warranty Optional

Direct Drive Technology

Advantage

No oil

No seals to leak

Only 2 moving parts for simpler

Cleaner operation

Efficiency Design

Advantage

Low noise

Low energy consumption

Lightweight construction.

Permanent Magnet Synchronous Motor

Advantage

PMSM design supports lighter structure

Reliable performance

3-year warranty coverage.

Benefits

Advantage

Cost-effective

Scalable torque

Low energy losses for medium-space airflow applications.

Features

Durable 5-blade design for stable, efficient airflow

Compact, lightweight structure helps simplify installation

Optimized design supports extremely low energy consumption

Multiple fans can be connected for coordinated airflow control

Adjustable speed allows precise airflow for different working conditions

Safety cable and 5 blade retainer links provide added protection

UL/ULc certified and conforms to CE, EN, and IEC standards

The low-mounted drive, around 1.2 m, allows safer and faster maintenance without roof access

Maximizes HVAC system efficiency

Lower energy consumption

Reduces energy costs

Reduces your carbon footprint

Improves indoorair quality

Improves thermal comfort in summer and winter

Quiet operation reduces mental fatigue

Reduces mental fatigue

Increases worker productivity

Controller

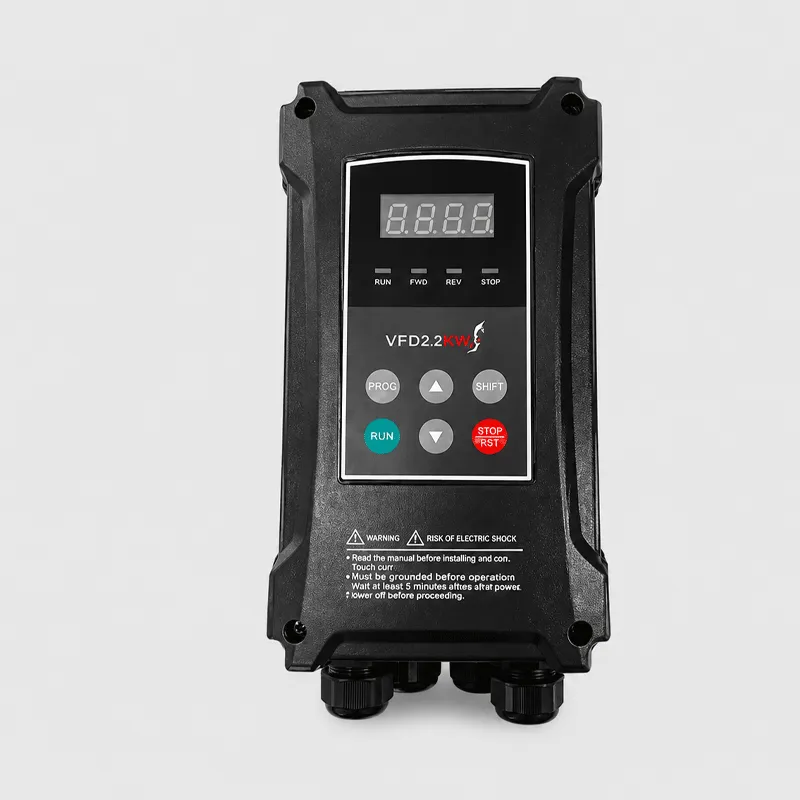

Fan Controller

The P680 controller uses advanced vector control technology to deliver more precise control and superior dynamic performance.

Its ultra-low-noise operation, timely protection functions, and high system stability help ensure reliable long-term performance in commercial and industrial environments.

Built-in self-protecting features support reliability and longevity, while the IP55-rated design provides dependable protection for demanding operating conditions.

Applications

Wide Applications of Vindus HVLS Fans in Industrial & Commercial Settings

The large-scale, energy-efficient HVLS fans from Vindus Fans are designed to enhance air circulation, temperature control, and energy savings across a variety of industrial and commercial spaces. These high-volume, low-speed (HVLS) fans provide uniform airflow, improving comfort, productivity, and operational efficiency in the following environments:

Warehouses & Logistics Centers

Optimized air circulation helps prevent heat buildup, ensuring stable inventory conditions and improving worker efficiency.
Reduces humidity levels, protecting stored goods from moisture damage.

Manufacturing Plants & Factories

Enhances factory ventilation, maintaining stable temperatures for precision manufacturing and worker safety.
Reduces HVAC energy consumption, lowering operational costs.

Sports Centers, Gymnasiums & Indoor Arenas

Even air distribution creates a comfortable environment for athletes and spectators.
Helps regulate humidity and temperature, preventing overheating during intense physical activities.

Agricultural Barns & Livestock Facilities

Improves air quality by preventing stagnant air, reducing heat stress for animals.
Helps maintain optimal airflow, creating better conditions for crop storage and livestock health.

Retail Spaces, Shopping Malls & Commercial Buildings

Enhances customer comfort with consistent air circulation, making shopping environments more pleasant.
Supports HVAC systems by reducing temperature fluctuations and minimizing energy costs.

Exhibition Halls & Convention Centers

Controls humidity and airflow, ensuring exhibits, artifacts, and displayed products are protected from moisture damage.
Provides a more comfortable atmosphere for visitors at large-scale events.

Automotive Repair Shops & Industrial Workshops

Regulates temperatures to create ideal working conditions, preventing excessive heat buildup.
Ensures equipment longevity by reducing temperature fluctuations in automobile service centers.

Food Processing & Cold Storage Facilities

Maintains consistent airflow, helping preserve food quality by controlling humidity levels.
Ensures safe and hygienic working conditions, reducing condensation and mold risks.

Educational Institutions (Schools, Universities, Training Centers)

Enhances air circulation in lecture halls, auditoriums, and cafeterias, creating a healthier learning environment.
Supports temperature control in gymnasiums and multi-purpose halls, ensuring comfort for students and staff.
