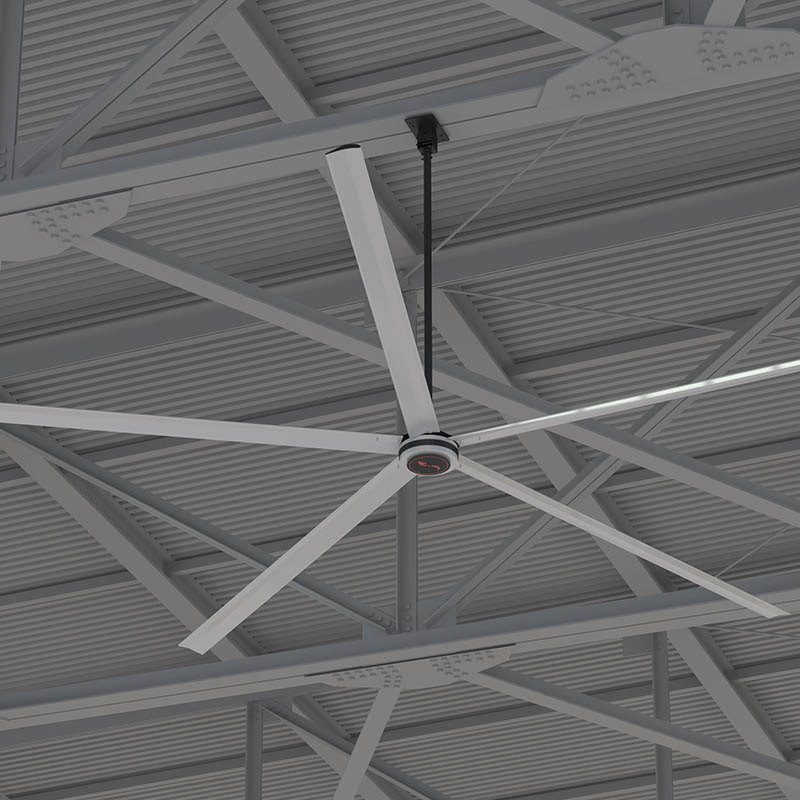

M750 Series HVLS Fans

The M750 delivers high performance cooling with its permanent magnet synchronous motor (PMSM), but manages to consume just 835W of energy at its top speed. That unique combination enables the M750 to provide extreme value in large industrial spaces and elsewhere. The fan’s energy savings will allow you to earn a fast return on your investment. The M750 Series has been designed for maximum value even when it comes to installation. It features a built-in HMI that’s located at floor level to reduce installation and maintenance costs. Its sleek design only requires a single cable from the ceiling to the floor in order to operate it. The M750 Series provides comfortable quiet airflow in the summer and equalizes temperatures in the winter. It works best in large spaces, with ceiling heights ranging from 7m (24ft) to 15m (50ft). The M750 Series is available in diameters ranging from 4.8m (16ft) to 7.2m (24ft) to suit your building’s needs.

Inquire Now

product details Features Controller Applications Inquire Now

Product Details

Fan Models \ Specifications	Diameters	Number of Blades	Weight	Max Rotation Speed	Power Usage(Watt)	Covered Area(Ft²)	Recommended Blade Height (FT)
M750-16	16ft	5	100 kg	78 RPM	413	6458	23-33
M750-18	18ft	5	104 kg	69 RPM	490	8073	23-33
M750-20	20ft	5	108 kg	60 RPM	580	9903	23-33
M750-24	24ft	5	113 kg	57 RPM	835	13993	23-33

General specifications
Voltage	208VAC – 240VAC Single Phase, 50Hz / 60Hz
Sound @ Max Speed	<50 dBA
IP Rating	IPX5 Indoor/Outdoor
Temperature Rating	-10℃ / +50℃
Certifications	CE, CN, IEC Certification
Controller	Forward direction 0-100%
Mounting	Fully Adjustable
Mount to Blades Height	1m Standard
Warranty	3 Years on all Parts – Extended Warranty Optional

Motor Technology: Direct drive technology

Advantage

No oil

No seals to leak

Only 2 moving parts

Low noise

Low energy consumption

Low weight

Features

5 anodized aluminium blades

Available in custom-painted colors

Quick and easy installation

Schedule and timer modes available

Energy-efficient operation

Made in Europe

Network HMI for up to 10 fans

Conforms to CE, EN, and IEC standards

10 speed settings

Multiple redundancies in all critical components,

Reverse mode for destratification

including blades, motors, electronics, and mount

Maximizes HVAC system efficiency

Lower energy consumption

Reduces energy costs

Reduces your carbon footprint

Improves indoor air quality

Improves thermal comfort in summer and winter

Extremely quiet operation

Reduces mental fatigue

Increases worker productivity

Controller

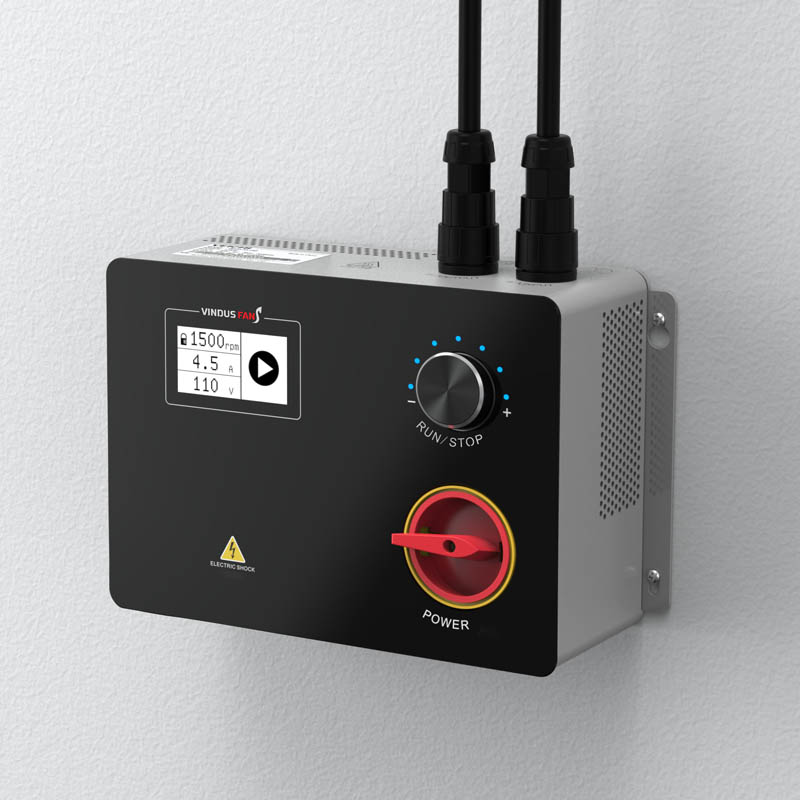

Fan Controller

Compatible with M650 and M750

Integrated wall mount design

LCD display

Up to 20 Vindus fans can be easily operated using this digital controller

Easy command for forward functions with 7 speed levels

Multi-function potentiometer with LED status indicator

Wireless remote control (optional)

Built-in smart internet of things (IoT) module (optional)

Applications

Wide Applications of Vindus HVLS Fans in Industrial & Commercial Settings

The large-scale, energy-efficient HVLS fans from Vindus Fans are designed to enhance air circulation, temperature control, and energy savings across a variety of industrial and commercial spaces. These high-volume, low-speed (HVLS) fans provide uniform airflow, improving comfort, productivity, and operational efficiency in the following environments:

Warehouses & Logistics Centers

Optimized air circulation helps prevent heat buildup, ensuring stable inventory conditions and improving worker efficiency.
Reduces humidity levels, protecting stored goods from moisture damage.

Manufacturing Plants & Factories

Enhances factory ventilation, maintaining stable temperatures for precision manufacturing and worker safety.
Reduces HVAC energy consumption, lowering operational costs.

Sports Centers, Gymnasiums & Indoor Arenas

Even air distribution creates a comfortable environment for athletes and spectators.
Helps regulate humidity and temperature, preventing overheating during intense physical activities.

Agricultural Barns & Livestock Facilities

Improves air quality by preventing stagnant air, reducing heat stress for animals.
Helps maintain optimal airflow, creating better conditions for crop storage and livestock health.

Retail Spaces, Shopping Malls & Commercial Buildings

Enhances customer comfort with consistent air circulation, making shopping environments more pleasant.
Supports HVAC systems by reducing temperature fluctuations and minimizing energy costs.

Exhibition Halls & Convention Centers

Controls humidity and airflow, ensuring exhibits, artifacts, and displayed products are protected from moisture damage.
Provides a more comfortable atmosphere for visitors at large-scale events.

Automotive Repair Shops & Industrial Workshops

Regulates temperatures to create ideal working conditions, preventing excessive heat buildup.
Ensures equipment longevity by reducing temperature fluctuations in automobile service centers.

Food Processing & Cold Storage Facilities

Maintains consistent airflow, helping preserve food quality by controlling humidity levels.
Ensures safe and hygienic working conditions, reducing condensation and mold risks.

Educational Institutions (Schools, Universities, Training Centers)

Enhances air circulation in lecture halls, auditoriums, and cafeterias, creating a healthier learning environment.
Supports temperature control in gymnasiums and multi-purpose halls, ensuring comfort for students and staff.
